9-19 9-26 type centrifugal Ventilator
Product Name： 9-19 9-26 type centrifugal Ventilator

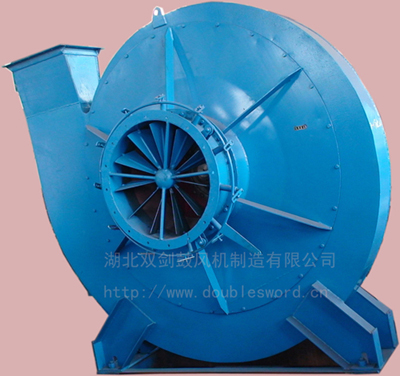

Appearance：


Product Detail

-19 9-26 type centrifugal Ventilator
 9-26 type centrifugal Ventilator


First, fan use

   9-19, 9-26 type centrifugal Ventilator , compared to other fans , it has high efficiency, low noise, performance curve is flat and the high efficient area is wide. it has 70’s advanced level. The fan can be used for the ventilation of smithery furnace and high-pressure forced ventilation and it can be widely used for the transportation of materials, gas as well as special gas.



second, fan form

        1, The fan can be single absorption and the numbers are No.4, 4.5, 5, 5.6, 6.3, 7.1, 8, 9, 10, 11.2, 12.5, 14, 16. Other numbers can be made according to the requirements of the customers.
2, Ventilator can be Rotate Left or Rotate Right.
3, fan exit can be six angles according to the angle of main case.
4, The fan driving mode can be A type(4~6.3) and D type(7.1~16).



Third, main components' structure property

In the fan No4~6.3 are mainly made up of impeller, main case, air intake, bracket and so on. No7..1~16 is made up of impeller, main case, air intake, Transmission group.
1, impeller: 9-19 type fan blade can be 12 pieces, 9-26 type fan blade can be 16pieces.
2, main case: Steel plate welded into a whole volute shell.
3, air intake: Made the overall structure convergent streamline the front cover with a fixed set of Bolt .

4, Transmission group: It is made up of principal axis, bearing housing, coupler and so on.

.

Fourth, performance parameter

1. 9-19 centrifugal Ventilator performance and optional part

Number
No
Driving type
Revolution
r/min
Number
Flux
m3/h
Total Pressure
Pa
Internal efficiency
%
Internal Power
KW
Power
kw
Electric motor
Rubber insert
ST0601
(4)
Bolt
CB30-76
(4)
Nut
CB52-76
(4)
Grommet
CB97-76
(4)
Model
Power
KW
4
A
2900
1
824
3584
70
1.16
1.5
Y90L-2
2.2
11×70
M8×40
M8
8
2
970
3665
73.5
1.33
1.7
3
1116
3647
75.5
1.48
1.9
4
1264
3597
76
1.64
2.1
5
1410
3507
75.5
1.80
2.3
Y100L-2
3
13×90
M10×45
M10
10
6
1558
3384
73.3
1.97
2.6
7
1704
3253
70
2.17
2.6
4.5
A
2900
l
1174
4603
71.2
2.07
2.5
Y112M-2
4
13×90
M10×45
M10
10
2
1397
4684
75
2.38
2.9
3
1616
4672
77
2.68
3.2
4
1839
4580
77.3
2.98
3.6
Y132S1-2
5.5
13×90
M10×45
M10
10
5
2062
4447
76.2
3.29
3.9
6
228l
4297
73.8
3.63
4.4
7
2504
4112
70
4.03
4.8
5
A
2900
l
1610
5697
72.7
3.43
4.1
Y132S2-2
7.5
13×90
M10×45
M10
10
2
1932
5768
76.2
3.98
4.8
3
2254
5740
78.2
4.50
5.4
4
2576
5639
78.5
5.04
5.8
5
2844
5517
77.2
5.54
6.4
6
3166
5323
74.5
6.17
7.0
7
3488
5080
70.5
6.68
7.9
Y160M1-2
11
16×100
M12×50
M12
12
5.6
A
2900
l
2262
7182
72.7
6.05
7.0
Y160M1-2
11
16×100
M12×50
M12
12
2
2714
7273
76.2
7.02
8.1
3
3167
7236
78.2
7.93
9.1
4
3619
7109
78.5
8.88
10.2
Y160L-2
18.5
16×100
M12×50
M12
12
5
3996
6954
77.2
9.76
11.2
6
