4-72 B4-72 type centrifugal Ventilator
Product Name: 4-72 B4-72 type centrifugal Ventilator

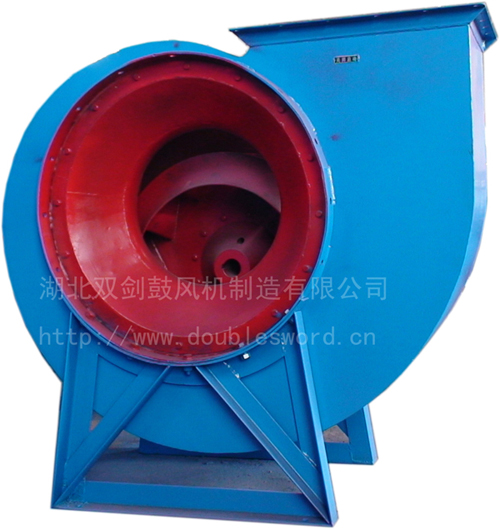

Appearance:


Product Detail

4-72 B4-72 type centrifugal Ventilator


First, Introduction

4-72 type centrifugal ventilator can be used as the indoor ventilator in large buildings and it is harmless to human bodies and it is no corrosion to the steel materials.

Corrosive gas. B4-72 type fan can be used for the ventilation of the inflammable gas. The viscosity gas should be avoided and the grain rate should be less than 150mg/m3. The gas temperature should be less than 80°C. B4-72 type fan performance should be the same with base size and it can be chosen according to the samples.

 second, 4-72 type fan form

   Fan exit position should be determined according to the main case wind exit mouth angle. 4-72 type fan №2.8-6 are made into one type, Users can regulate the position according to the installation requirements. NO2.8 regulation scope can be 0 --225 , interval: 45 . No3.2--6 regulation scope 0 --225 , interval 22,5 . No8--12 regulation scope: 0 --225, interval: 45 . Nol6, 20 wind exit mouth position can be three kinds, O , 90 , l80 , it cannot be regulated and noted when ordered.
Fan driving mode can be A, B, C, D. 4-72 type fan, №2.8--6 adopts A type to drive, №6--12 adopts c, D type to drive, №16--20 adopts B type to drive.

Third, 4-72 type fan structure

       4-72 type fan N2.8A--6A can be made up of impeller, main case, air intake as well as direct connected electric motors.
(1) Impeller can be made up of type blade, curve type front plate and plate back plate. They are made from steel plate or foundry alloy through balancing. It has great air performance, high efficiency, and stable.
(2) Main case can be two types. N02.8--12main case as the main body, and it can not be parted. NO1 6-20 main case can be made up of three types.
(3) Air intake formed the whole set and installed in the back of fan.
(4)The driving part can be made up of principal axis, bearing housing, antifriction bearing, belt pulley or coupler.


 Fourth, 4-72 Ventilator performance parameter

NumberNO
Driving mode
Revolutionr/min
Number
Flux
Total PressurePa
Internal efficiency%
Internal PowerkW
PowerkW
Electric motor
Bolt GB799-76(4)
Ground nutsG86170-86(4)
GrommetGB96-85(4)
m3/S
m3/h
Model
PowerkW
2.8
A
2900
1
O.314
1131
994
69.3
O.45
O.67
Y90S-2
(B35)
1.5
M8×220
M8
8
2
0.364
1310
966
73.2
0.48
0.72
3
O.411
1480
933
75.5
O.51
O.71
4
0.461
1659
887
76.8
O.53
0.74
5
0.508
1828
835
76.9
0.55
O.77
6
0.558
2007
770
75.6
O.57
O.79
7
0.605
2177
702
73.2
0.58
0.81
8
O.654
2356
606
69.3
O.57
O.80
3.2
A
2900
1
0.469
1688
1300
69.3
O.88
1.23
Y90L-2
(B35)
2.2
M8×220
M8
8
2
0.543
1955
1263
73.2
O.93
1.31
3
0.614
2209
1220
75.5
O.99
1.38
4
0.688
2476
1160
76.8
1.03
1.34
5
0.758
2729
1091
76.9
1.07
1.39
6
0.832
2996
1006
75.6
1.10
1.43
7
0.903
3250
918
73.2
1.13
1.47
8
O.977
3517
792
69.3
1.11
1.45
3.2
A
1450
1
0.234
844
324
69.3
O.11
O.16
Y90S-2
(B35)
1.1
M8×220
M8
8
2
O.272
978
315
73.2
O.12
O.17
3
0.307
1104
304
75.5
O.12
O.19
4
0.344
1238
289
76.8
O.13
0.19
5
0.379
1365
272
76.9
O.13
0.20
6
0.416
1498
251
75.6
O.14
O.21
7
O.451
1625
229
73.2
O.14
O.21
8
0.488
1758
198
69.3
O.14
0.21
3.6
A
2900
1
0.740
2664
1578
74.2
1.56
2.03
Y100L-2
(B35)
