Cement Kiln Blower

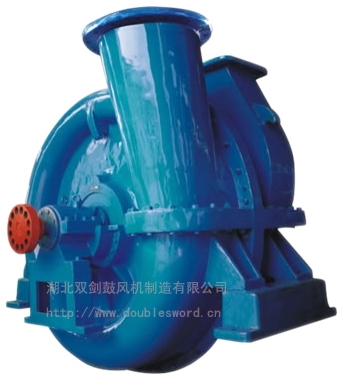

Product Name: Cement Kiln Blower
Appearance:


Product Detail

 First, introduction

 Cement Kiln series special use Blower is designed for the energy saving of Cement Kiln to replace Roots Blower. It is a kind of new type, high pressure, high efficient, low noise and energy saving products. It is suitable for φ 2.0 ×8m--φ3.2 ×12m various common and machine vertical kiln..

It can be complement for the production line of cement for the annual productivity 300—8000tons.The design is advanced, structure is tense. It is convenient to regulate and install. It is stable to operate with anti--friction,high temperature resistant and high efficient features.

Second, Features:

1, It is high efficient, low noise, the performance curve is flat.
2, Regulation door.
3, Blower has low noise which can improve the operating environment.

Third, Cement kiln Blower Performance parameter list

(Shaft Kiln: Φ1.7m×7m.Φ2m×8m.Φ2.2m×8.5m.Φ2.5m×9m.Φ2.8m×10m.Φ3m---3.2m×7m.)


Type Transmition medium Entrance status Exit temperature increasing Shaft powerKW Main shaft speed Main body weightKG Electromotor Corollary equipment
Flow rate Pressure Temperature Medium temperature
mmH2O Pa Type Power Voltage
kgf/cm2 KPa
AI100-1.12 air 100 1 98.07 20 1.16 1200 11769 26.4 2900 2800 Y200L2-2 37 380 Ø1.7×7m
C150-1.18 air 150 1 98.07 20 1.16 1800 17653 58.8 2950 3500 Y280S-2 75 380 Ø2.0×8m
C200-1.23 air 200 1 98.07 20 1.16 2300 22556 100.1 2950 4000 Y315S-2 110 380 Ø2.5×10m
C120-1.23 air 120 1 98.07 20 1.16 2300 22556 60.1 2950 3800 Y280S-2 75 380 Ø1.7×6.5~7m
C150--1.23 air 150 1 98.07 20 1.16 2300 22556 75.1 2950 3800 Y280M-2 90 380 Ø2.0×6.5~8m
C200-1.25 air 200 1 98.07 20 1.16 2500 24517 108.9 2950 4000 Y315M-2 132 380 Ø2.2×7~8.5m
C250-1.33 air 250 1 98.07 20 1.16 3300 32363 179.7 2950 4100 Y315M2-2 200 380 Ø2.5×8~10m
C300-1.35 air 300 1 98.07 20 1.16 3500 34324 288.7 2950 4200 Y321M4-2 250 380 Ø2.8~3.2×10m




≡ Related Products
Sulfuric acid centrifugal Blower
Sulfuric acid centrifugal Blower
First, Introduction     The series centrifugal Blower can be used for the transportation of SO2 gas, Coal Gas and air and so on. It has high pressure, low electricity consumption,...

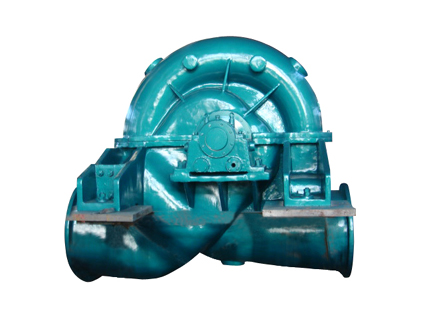

high speed centrifugal blower
